Understanding Leakage Current in Capacitors

1. What Exactly is Leakage Current, Anyway?

Let’s talk about capacitors, those little energy-storing devices that are everywhere in electronics. Ideally, a capacitor should hold its charge until you need it, like a tiny battery. But in reality, capacitors aren’t perfect. They slowly lose their charge over time due to something called leakage current. Think of it like a tiny hole in a bucket; it slowly lets the water (charge) escape. No one wants a leaky bucket, and no one wants a capacitor with high leakage current!

Leakage current is the small amount of DC current that flows through the dielectric (the insulating material) of a capacitor when a voltage is applied. It’s measured in microamps (A) or even nanoamps (nA), which is pretty darn small. But even small amounts of leakage can cause problems in sensitive circuits. For example, in timing circuits, leakage can change the timing accuracy. In sample-and-hold circuits, it can cause the voltage to droop. So, minimizing leakage is often crucial.

Several factors contribute to leakage current, including the type of dielectric material used, the voltage applied, the temperature, and even manufacturing imperfections. Some materials are inherently more leaky than others. Higher voltages tend to increase leakage, as does higher temperatures. Imagine a dam holding back water; the higher the water level (voltage), the more likely it is to seep through cracks. Same principle applies here, but on a microscopic scale.

Why should you even care? Well, if you’re designing a circuit that needs to hold a charge for a long time, like in memory backup systems or low-power applications, you definitely want to choose a capacitor with low leakage. Choosing the right capacitor can significantly impact the performance and reliability of your electronic circuits. Think of it like choosing the right tool for the job; you wouldn’t use a hammer to screw in a screw, would you? You want a tool that’s up to the task, and in this case, a capacitor that won’t leak all its precious energy.

Lowest Leakage Current Capacitor

Capacitor Types and Their Leakage Characteristics

2. A Rundown of the Usual Suspects

Now that we understand what leakage current is, let’s dive into the different types of capacitors and how they stack up against each other in terms of leakage. We’ll look at the most common types: electrolytic, ceramic, tantalum, and film capacitors. Each has its own strengths and weaknesses, and leakage current is a key factor to consider when choosing the right one.

Electrolytic capacitors, particularly aluminum electrolytics, generally have the highest leakage current. They are known for their high capacitance values in a small package, but this comes at the cost of higher leakage and shorter lifespan compared to other types. Tantalum capacitors offer better performance than aluminum electrolytics, with lower leakage and a longer lifespan. However, they can be sensitive to voltage spikes and can fail catastrophically if overstressed.

Ceramic capacitors, especially those made with C0G/NP0 dielectrics, exhibit very low leakage current. These are often preferred in applications where low leakage is critical. Film capacitors, such as polypropylene and polyester types, also boast low leakage characteristics, along with excellent stability and high voltage ratings. They’re a good all-around choice for many applications.

To summarize, for applications needing the lowest leakage current, ceramic (C0G/NP0) and film capacitors are generally the best choices. Electrolytic capacitors should be avoided when low leakage is essential. Tantalum capacitors offer a compromise between performance and size, but their sensitivity to voltage spikes needs to be considered. Choosing the right type is all about balancing the various trade-offs to meet the specific requirements of your circuit.

Low Leakage Capacitors

So, Which Capacitor Type Wins the Leakage Battle?

3. The Champion of Low Leakage Revealed!

Alright, we’ve talked about the contenders, now let’s crown the champion. Which capacitor type consistently demonstrates the lowest leakage current? Drumroll, please… it’s generally considered to be ceramic capacitors with a C0G/NP0 dielectric and film capacitors.

C0G/NP0 ceramic capacitors are prized for their exceptional stability, low loss, and, most importantly, incredibly low leakage. Their dielectric material is very stable over temperature and voltage, which translates to minimal leakage current. These capacitors are often used in precision circuits where even a tiny amount of leakage can throw things off.

Film capacitors, like polypropylene and polyester types, also offer excellent leakage characteristics. They’re robust, stable, and can handle higher voltages than ceramic capacitors in some cases. Film capacitors are a great all-around choice when you need both low leakage and reliable performance.

However, there are caveats. While C0G/NP0 ceramic capacitors have exceptional low leakage, they are usually limited to smaller capacitance values. Film capacitors can offer larger capacitance values, but they can also be physically larger. The best choice depends on the overall needs of your circuit, including capacitance, voltage, size, and cost. But when leakage current is the primary concern, both C0G/NP0 ceramic and film capacitors are the clear winners.

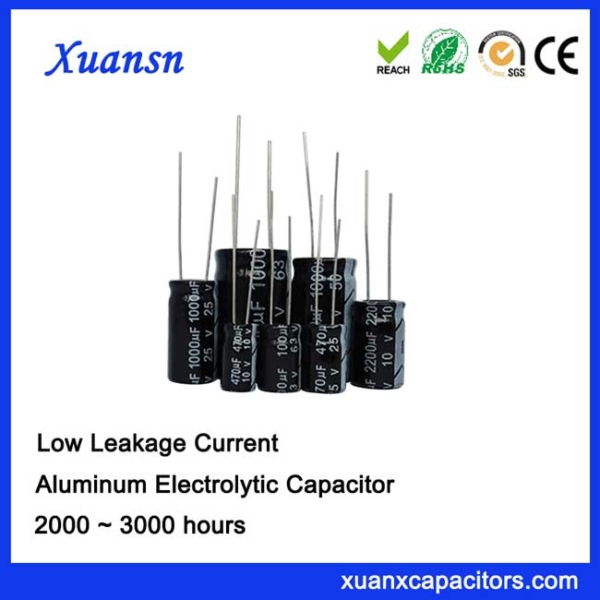

Low Leakage Current Electrolytic Capacitor, Large Ripple Capacitor

Factors Affecting Leakage Current

4. It’s Not Just About the Material, You Know!

While capacitor type plays a significant role in determining leakage current, it’s not the only factor at play. Several other elements can influence how much a capacitor leaks, including voltage, temperature, and even how the capacitor is manufactured.

Voltage is a big one. As you increase the voltage across a capacitor, the electric field within the dielectric material becomes stronger. This stronger field can cause more current to flow through the dielectric, increasing leakage. Think of it like trying to force more water through a pipe; eventually, you’ll start to see leaks. The same principle applies to capacitors, just with electrons instead of water.

Temperature also plays a crucial role. Generally, as temperature increases, so does leakage current. This is because higher temperatures increase the mobility of ions within the dielectric material, making it easier for current to flow. It’s like heating up a sticky substance; it becomes more fluid and flows more easily. In capacitors, this increased fluidity leads to higher leakage.

Manufacturing variations can also impact leakage. Tiny imperfections in the dielectric material, such as voids or impurities, can create pathways for current to flow. Even the way the capacitor is assembled can influence leakage. So, even within the same type of capacitor, there can be variations in leakage current from one unit to another. Choosing reputable manufacturers with strict quality control processes can help minimize these variations.

Resistances (left) And Leakage Currents (right) Of Printed Capacitors

Practical Tips for Minimizing Leakage Current in Your Circuits

5. Hacks and Tricks to Keep the Current Where It Belongs

Okay, so you know which capacitors have the lowest leakage and what factors affect it. Now, let’s talk about some practical tips you can use to minimize leakage current in your circuit designs. These tips can help you achieve better performance, reliability, and longevity for your electronic projects.

First and foremost, choose the right capacitor type for the job. If low leakage is critical, opt for C0G/NP0 ceramic or film capacitors. Avoid electrolytic capacitors in sensitive applications where leakage could be a problem. Consider the trade-offs between capacitance, voltage, size, and cost to find the best fit for your needs.

Next, keep the operating voltage within the capacitor’s specifications. Exceeding the rated voltage can significantly increase leakage and even damage the capacitor. Derate the voltage if possible, meaning use a capacitor with a higher voltage rating than you strictly need. This provides a safety margin and can help reduce leakage, especially at higher temperatures.

Also, manage the temperature of your circuit. High temperatures increase leakage current, so try to keep your components cool. Use heat sinks, fans, or other cooling methods to dissipate heat and maintain a stable operating temperature. Proper ventilation can also help prevent heat buildup within your enclosure.

Finally, consider using guard rings or shielding around sensitive components. A guard ring is a conductive trace that surrounds a sensitive node in your circuit. It’s connected to a stable voltage, such as ground, and helps to shunt away any leakage current that might otherwise flow into the sensitive node. Shielding can also help reduce external interference that could contribute to leakage.
